General information |
Brand | Volkswagen |

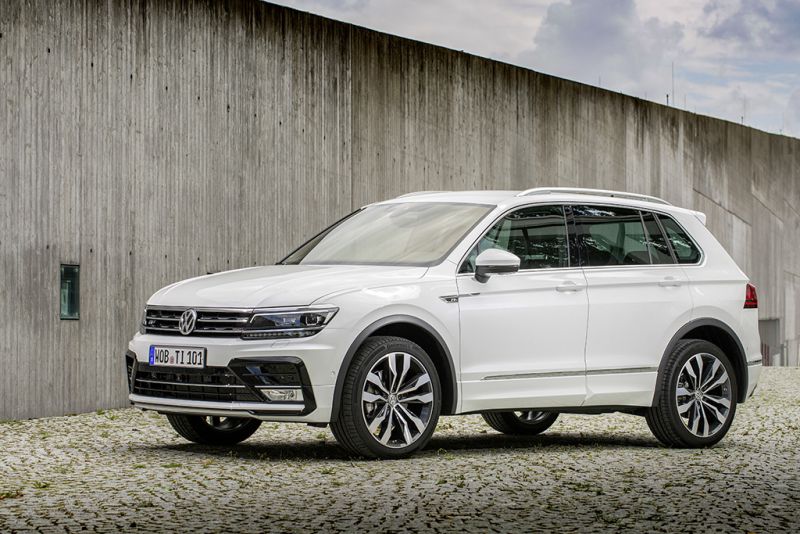

Model | Tiguan |
Generation | Tiguan II (facelift 2020) |
Modification (Engine) | 1.4 TSI (245 Hp) eHybrid DSG |
Start of production | November, 2020 year |
Powertrain Architecture | PHEV (Plug-in Hybrid Electric Vehicle) |
Body type | SUV |
Seats | 5 |
Doors | 5 |
Performance specs |
---|
Combined fuel consumption (WLTP) |
1.5 l/100 km
156.81 US mpg188.32 UK mpg66.67 km/l |
CO2 emissions (WLTP) | 35 g/km |
Fuel consumption (economy) - combined (NEDC) |
1.8 l/100 km
130.67 US mpg156.93 UK mpg55.56 km/l |
CO2 emissions (NEDC) | 42 g/km |
Fuel Type | petrol / electricity |
Acceleration 0 - 100 km/h | 7.5 sec |
Acceleration 0 - 62 mph | 7.5 sec |
Acceleration 0 - 60 mph | 7.1 sec |
Maximum speed |
205 km/h
127.38 mph |
Emission standard | Euro 6d-ISC-FCM |
Weight-to-power ratio | 7.1 kg/Hp, 141.1 Hp/tonne |
Weight-to-torque ratio | 4.3 kg/Nm, 230.4 Nm/tonne |
Electric cars and hybrids specs |
---|
Gross battery capacity | 13 kWh |
Net (usable) battery capacity | 10.4 kWh |
Battery technology | Lithium-ion (Li-Ion) |
All-electric range (WLTP) |
50 km
31.07 mi |
All-electric range (NEDC) |
59 km
36.66 mi |
Average Energy consumption (WLTP) |
15.2 kWh/100 km
24.46 kWh/100 mi138 MPGe6.6 km/kWh4.1 mi/kWh |
Average Energy consumption (NEDC) |
13.4 kWh/100 km
21.57 kWh/100 mi156 MPGe7.5 km/kWh4.6 mi/kWh |
Max speed (electric) |
130 km/h
80.78 mph |
Electric motor 1 |
Electric motor power | 115 Hp |
Electric motor Torque |
330 Nm
243.4 lb.-ft. |
Engine location | Electric motor, integrated into transmission |
System power | 245 Hp |
System torque |
400 Nm
295.02 lb.-ft. |
Internal combustion engine specs |
---|
Power | 150 Hp @ 5000-6000 rpm. |
Power per litre | 107.5 Hp/l |
Torque |
250 Nm @ 1550-3500 rpm.
184.39 lb.-ft. @ 1550-3500 rpm. |
Engine location | Front, Transverse |
Engine Model/Code | DGEA |
Engine displacement |
1395 cm3
85.13 cu. in. |
Number of cylinders | 4 |
Position of cylinders | Inline |
Cylinder Bore |
74.5 mm
2.93 in. |
Piston Stroke |
80 mm
3.15 in. |
Compression ratio | 10 |
Number of valves per cylinder | 4 |
Fuel System | Direct injection |
Engine aspiration | Turbocharger, Intercooler |
Valvetrain | DOHC |
Engine oil capacity |
4 l
4.23 US qt | 3.52 UK qt |
Oil viscosity | No Data |
Engine oil specification |
Engine systems | Start & Stop SystemParticulate filter |
|
---|
Space, Volume and weights |
---|
Kerb Weight |
1736 kg
3827.22 lbs. |
Max. weight |
2350 kg
5180.86 lbs. |
Max load |
614 kg
1353.64 lbs. |
Trunk (boot) space - minimum |
476 l
16.81 cu. ft. |
Fuel tank capacity |
45 l
11.89 US gal | 9.9 UK gal |
Max. roof load |
75 kg
165.35 lbs. |
Permitted trailer load with brakes (8%) |
2000 kg
4409.25 lbs. |
Permitted trailer load with brakes (12%) |
1800 kg
3968.32 lbs. |
Permitted trailer load without brakes |
750 kg
1653.47 lbs. |
Permitted towbar download |
100 kg
220.46 lbs. |
Dimensions |
---|
Length |
4509 mm
177.52 in. |
Width |
1839 mm
72.4 in. |
Width including mirrors |
2099 mm
82.64 in. |
Height |
1681 mm
66.18 in. |
Wheelbase |
2680 mm
105.51 in. |
Front track |
1576-1586 mm
62.05 - 62.44 in. |
Rear (Back) track |
1567-1577 mm
61.69 - 62.09 in. |
Minimum turning circle (turning diameter) |
11.5 m
37.73 ft. |
Approach angle | 17.5° |
Departure angle | 18.9° |
Ramp-over (brakeover) angle | 16.5° |
Drivetrain, brakes and suspension specs |
---|
Drivetrain Architecture | The Internal combustion engine (ICE) and electric motor drive the front wheels of the car with the ability to work in full electric or mixed mode. |
Drive wheel | Front wheel drive |
Number of Gears (automatic transmission) | 6 DSG |
Front suspension | Independent type McPherson, Transverse stabilizer |
Rear suspension | Transverse stabilizer, Independent multi-link |
Front brakes | Ventilated discs |
Rear brakes | Disc |
Assisting systems | ABS (Anti-lock braking system) |
Steering type | Steering rack and pinion |
Power steering | Electric Steering |
Tires size | 215/65 R17 |
Wheel rims size | 7J x 17 |
|
