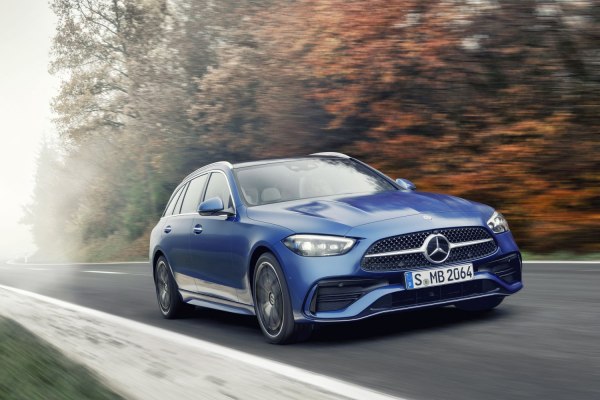

| General information |
|---|
| Brand | Mercedes-Benz |
|---|
| Model | C-class |
|---|
| Generation | C-class T-modell (S206) |
|---|
| Modification (Engine) | C 200 EQ Boost (204 Hp) 4MATIC 9G-TRONIC |
|---|
| Start of production | 2021 year |
|---|
| Powertrain Architecture | MHEV (Mild Hybrid Electric Vehicle, power-assist hybrid, battery-assisted hybrid vehicles, BAHV) |
|---|
| Body type | Station wagon (estate) |
|---|
| Seats | 5 |
|---|
| Doors | 5 |
|---|
| Performance specs |
|---|
| Combined fuel consumption (WLTP) |
6.9-7.8 l/100 km
34.09 - 30.16 US mpg40.94 - 36.22 UK mpg14.49 - 12.82 km/l |
| CO2 emissions (WLTP) | 156-177 g/km |
|---|
| Fuel consumption (economy) - urban (NEDC) |
9.2-9.6 l/100 km
25.57 - 24.5 US mpg30.7 - 29.43 UK mpg10.87 - 10.42 km/l |
| Fuel consumption (economy) - extra urban (NEDC) |
5.3-5.7 l/100 km
44.38 - 41.27 US mpg53.3 - 49.56 UK mpg18.87 - 17.54 km/l |
| Fuel consumption (economy) - combined (NEDC) |
6.7-7.1 l/100 km
35.11 - 33.13 US mpg42.16 - 39.79 UK mpg14.93 - 14.08 km/l |
| CO2 emissions (NEDC) | 154-163 g/km |
|---|
| Fuel Type | Petrol (Gasoline) |
|---|
| Acceleration 0 - 100 km/h | 7.3 sec |
|---|
| Acceleration 0 - 62 mph | 7.3 sec |
|---|
| Acceleration 0 - 60 mph | 6.9 sec |
|---|
| Maximum speed |
237 km/h
147.26 mph |
| Emission standard | Euro 6d-ISC-FCM |
|---|
| Weight-to-power ratio | 8.3 kg/Hp, 120.7 Hp/tonne |
|---|
| Weight-to-torque ratio | 5.6 kg/Nm, 177.5 Nm/tonne |
|---|
| Electric cars and hybrids specs |
|---|
| Electric motor 1 |
|---|
| Electric motor power | 20 Hp |
|---|
| Electric motor Torque |
200 Nm
147.51 lb.-ft. |
| Engine location | Electric motor, integrated into transmission |
|---|
| Internal combustion engine specs |
|---|
| Power | 204 Hp @ 5800-6100 rpm. |
|---|
| Power per litre | 136.4 Hp/l |
|---|
| Torque |
300 Nm @ 1800-4000 rpm.
221.27 lb.-ft. @ 1800-4000 rpm. |
| Engine location | Front, Longitudinal |
|---|
| Engine Model/Code | M 254.915 |
|---|
| Engine displacement |
1496 cm3
91.29 cu. in. |
| Number of cylinders | 4 |
|---|
| Position of cylinders | Inline |
|---|
| Cylinder Bore |
80.4 mm
3.17 in. |
| Piston Stroke |
73.7 mm
2.9 in. |
| Number of valves per cylinder | 4 |
|---|
| Fuel System | Direct injection |
|---|
| Engine aspiration | Turbocharger, Intercooler |
|---|
| Valvetrain | DOHC |
|---|
| Engine oil capacity |
6 l
6.34 US qt | 5.28 UK qt |
| Oil viscosity | No Data |
| Engine oil specification |
| Coolant |
12 l
12.68 US qt | 10.56 UK qt |
| Engine systems | Start & Stop SystemParticulate filter |
|---|
|
|---|
| Space, Volume and weights |
|---|
| Kerb Weight |
1690 kg
3725.81 lbs. |
| Max. weight |
2375 kg
5235.98 lbs. |
| Max load |
685 kg
1510.17 lbs. |
| Trunk (boot) space - minimum |
490 l
17.3 cu. ft. |
| Trunk (boot) space - maximum |
1510 l
53.33 cu. ft. |
| Fuel tank capacity |
50 l
13.21 US gal | 11 UK gal |
| Max. roof load |
100 kg
220.46 lbs. |
| Permitted trailer load with brakes (12%) |
1800 kg
3968.32 lbs. |
| Permitted trailer load without brakes |
750 kg
1653.47 lbs. |
| Permitted towbar download |
75 kg
165.35 lbs. |
| Dimensions |
|---|
| Length |
4751 mm
187.05 in. |
| Width |
1820 mm
71.65 in. |
| Width including mirrors |
2033 mm
80.04 in. |
| Height |
1454 mm
57.24 in. |
| Wheelbase |
2865 mm
112.8 in. |
| Front track |
1582-1601 mm
62.28 - 63.03 in. |
| Rear (Back) track |
1594-1613 mm
62.76 - 63.5 in. |
| Front overhang |
800 mm
31.5 in. |
| Rear overhang |
1086 mm
42.76 in. |
| Ride height (ground clearance) |
97 mm
3.82 in. |
| Drag coefficient (Cd) | 0.27 |
|---|
| Minimum turning circle (turning diameter) |
10.64 m
34.91 ft. |
| Approach angle | 13.7° |
|---|
| Departure angle | 14.6° |
|---|
| Ramp-over (brakeover) angle | 8.5° |
|---|
| Drivetrain, brakes and suspension specs |
|---|
| Drivetrain Architecture | The Internal combustion engine (ICE) and the electric motor permanently drive the four wheels of the car with the ability to work only in mixed mode. |
|---|
| Drive wheel | All wheel drive (4x4) |
|---|
| Number of Gears (automatic transmission) | 9 G-TRONIC |
|---|
| Front suspension | Double wishbone |
|---|
| Rear suspension | Independent multi-link |
|---|
| Assisting systems | ABS (Anti-lock braking system)4-wheel steering (4WS, active rear steering) |
|---|
| Steering type | Steering rack and pinion |
|---|
| Power steering | Electric Steering |
|---|
| Tires size | Front wheel tires: 225/50 R17; 225/45 R18Rear wheel tires: 225/50 R17; 245/40 R18 |
| Wheel rims size | Front wheel rims: 7J x 17; 7.5J x 18Rear wheel rims: 7J x 17; 8.5J x 18 |
|---|
|
|---|
