General information

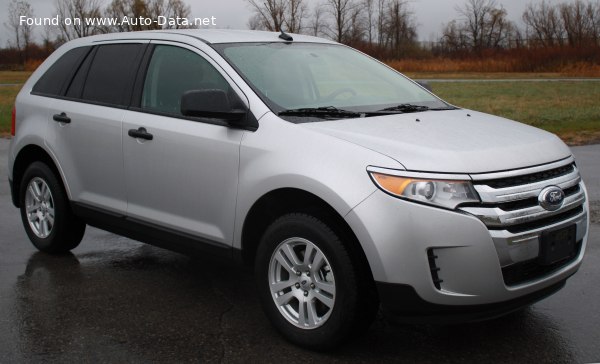

BrandFord
Model Edge
Generation Edge II
Modification (Engine) 2.0 TDCi (180 Hp) AWD
Start of production 2016 year
End of production 2018 year
Powertrain Architecture Internal Combustion engine
Body typeSUV
Seats 5
Doors 5
Performance specs
Fuel consumption (economy) - urban 6.4-6.5 l/100 km 36.75 - 36.19 US mpg44.14 - 43.46 UK mpg15.63 - 15.38 km/l
Fuel consumption (economy) - extra urban 5.4-5.5 l/100 km 43.56 - 42.77 US mpg52.31 - 51.36 UK mpg18.52 - 18.18 km/l
Fuel consumption (economy) - combined 5.8-5.9 l/100 km 40.55 - 39.87 US mpg48.7 - 47.88 UK mpg17.24 - 16.95 km/l
CO2 emissions149-152 g/km
Fuel Type Diesel
Acceleration 0 - 100 km/h9.9 sec
Acceleration 0 - 62 mph9.9 sec
Acceleration 0 - 60 mph 9.4 sec
Maximum speed 200 km/h 124.27 mph
Emission standard Euro 6
Weight-to-power ratio 10.2 kg/Hp, 97.9 Hp/tonne
Weight-to-torque ratio 4.6 kg/Nm, 217.6 Nm/tonne
Engine specs
Power 180 Hp @ 3500 rpm.
Power per litre 90.1 Hp/l
Torque 400 Nm @ 2000-2500 rpm. 295.02 lb.-ft. @ 2000-2500 rpm.
Engine location Front, Transverse
Engine displacement 1997 cm3 121.86 cu. in.
Number of cylinders 4
Position of cylinders Inline
Cylinder Bore 85 mm 3.35 in.
Piston Stroke 88 mm 3.46 in.
Compression ratio 16.7
Number of valves per cylinder 4
Fuel System Diesel Commonrail
Engine aspiration Turbocharger, Intercooler
Valvetrain DOHC
Engine systemsParticulate filter
Space, Volume and weights
Kerb Weight 1838 kg 4052.1 lbs.
Max. weight 2505 kg 5522.58 lbs.
Max load 667 kg 1470.48 lbs.
Trunk (boot) space - minimum 800 l 28.25 cu. ft.
Trunk (boot) space - maximum 1847 l 65.23 cu. ft.
Fuel tank capacity 68.9 l 18.2 US gal | 15.16 UK gal
Max. roof load 75 kg 165.35 lbs.
Permitted trailer load with brakes (12%) 2000 kg 4409.25 lbs.
Permitted trailer load without brakes 750 kg 1653.47 lbs.
Dimensions
Length 4808 mm 189.29 in.
Width 1928 mm 75.91 in.
Width with mirrors folded 1981 mm 77.99 in.
Width including mirrors 2184 mm 85.98 in.
Height 1707 mm 67.2 in.
Wheelbase 2849 mm 112.17 in.
Front track 1655 mm 65.16 in.
Rear (Back) track 1664 mm 65.51 in.
Ride height (ground clearance) 203 mm 7.99 in.
Minimum turning circle (turning diameter) 11.9 m 39.04 ft.
Approach angle 18.8°
Departure angle 22.4°
Ramp-over (brakeover) angle 17.1°
Drivetrain, brakes and suspension specs
Drive wheel All wheel drive (4x4)
Number of Gears (manual transmission) 6
Front suspension Independent, Spring McPherson, with stabilizer
Rear suspension Independent, spring multi-link with stabilizer
Front brakesVentilated discs
Rear brakesVentilated discs
Assisting systemsABS (Anti-lock braking system)
Steering type Steering rack and pinion
Power steering Electric Steering
Tires size 235/55 R19; 255/45 R20
Wheel rims size8J x 19; 8.5J x 20
